> SPECIFICATION | |||
Name | LED Street Light | Item No. | HQ-RL760-W150~200 |
Power | 150~200W | Input | AC85-265V 50/60Hz |
Lumen | 130LM/W | Viewing angle | 80*150° |
Color temperature | 2800-10000K | Color rendering index | >80 |
Working temperature | -30~+50℃ | Storage temperature | -30~+65℃ |
Protection grade | IP65 | LED lifespan | >50,000Hrs |
Shell color | Black | Measurement | 621*310*84MM |
> APPLICAITON | |
Widely used in main roads, elevated roads, urban streets, flyovers, sidewalks, high ways, overpasses, squares and other places requiring outdoor lighting. | |
> FEATURE | |
1. Energy savings of up to 50-80% over existing HID solutions | |
2. Environmentally friendly thickness aluminum, Processed by panting, treatment and anodic oxidation, solid and corrosion resisting | |
3. Free of dust and water, reduce stress of maintenance | |
4. With several types adapter, can meet any requirements of different application | |
5. Protection grade reaches IP65 | |

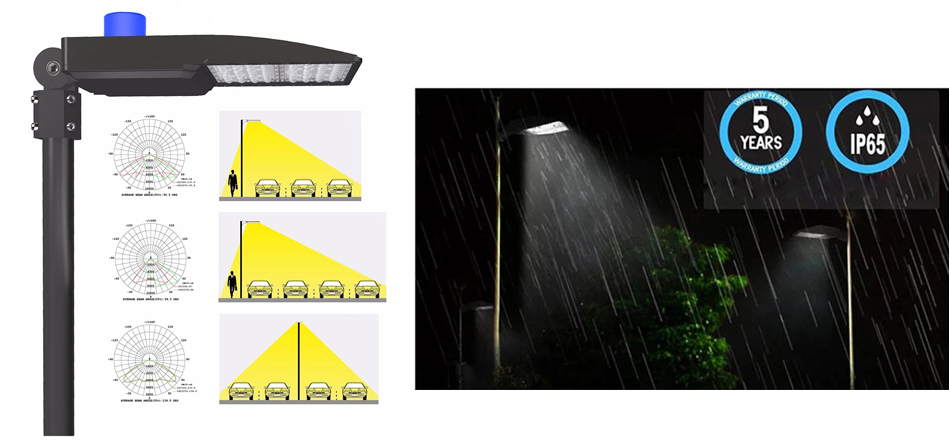

> DETAILS SHOW |

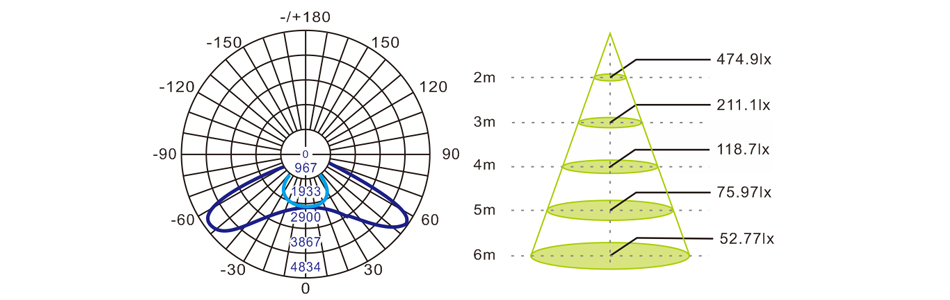

> DISTRIBUTION CURVE |

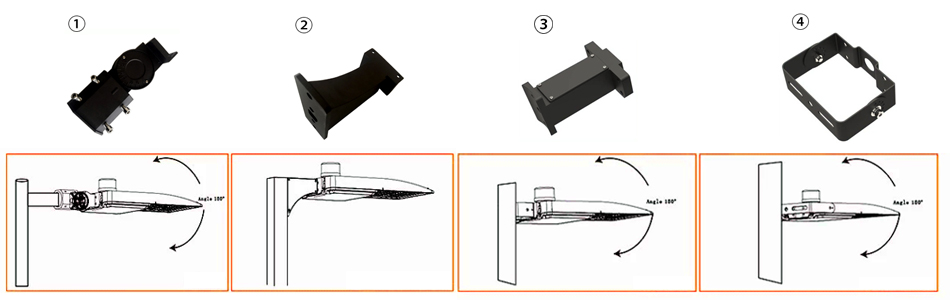

> ADAPTER |

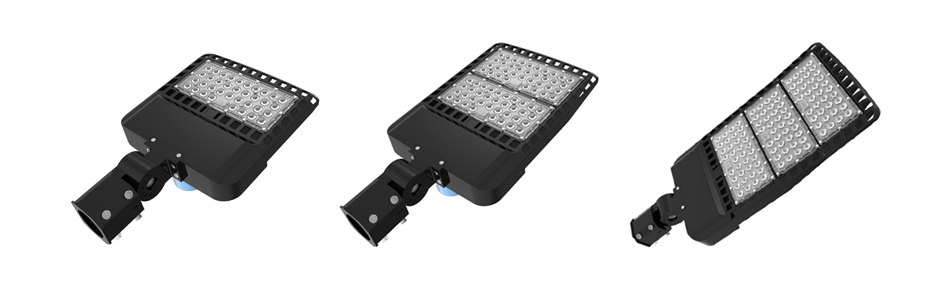

> ALL SERIES |
ITEM NO. | POWER | LUMEN | MEASUREMENT |
HQ-RL760-W50~120 | 50~120W | 130LM/W | 495*310*84MM |
HQ-RL760-W150~200 | 150~200W | 130LM/W | 621*310*84MM |
HQ-RL760-W300~350 | 300~350W | 130LM/W | 689*320*84MM |
